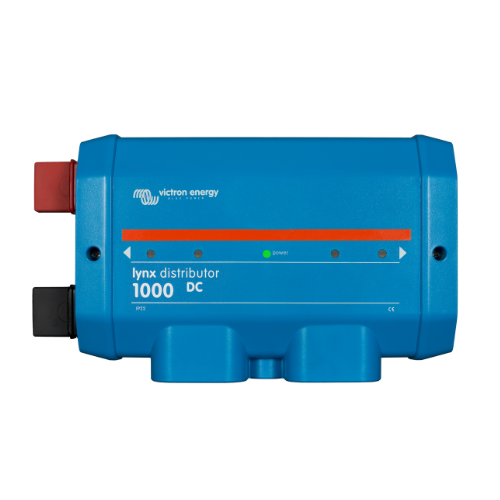

Victron Lynx Distributor

Victron Lynx Distributor Features and System Integration

• Four DC Fuse Positions: Supports up to four DC circuits or loads, each with individual MEGA fuse slots and dedicated LED indicators for blown fuse detection.

• Built-in Monitoring: Each fuse’s condition is displayed on the front panel using intuitive LED indicators.

• Positive and Negative Busbars: This includes integrated busbars to manage both the positive and negative sides of the DC system.

• System Expansion Ready: Fully compatible with other Lynx modules like the Lynx Power In, Lynx Shunt, and Lynx Smart BMS.

• Power/Data Connectivity: Includes a 40 cm RJ10 cable to provide power and data communication when connected to a Lynx Smart module or Lynx Shunt.

Note: While the M10 model refers to the size of the busbar interconnect points between modules, the fuse and cable connections remain M8 in both variants.

To enable LED fuse monitoring, the Victron Lynx Distributor must be connected to a Lynx Shunt, which supplies the required 5v power via its internal 8–70V DC input converter.

Victron Lynx Distributor is available on the Get Off Grid portal and at our Lusaka branch.
